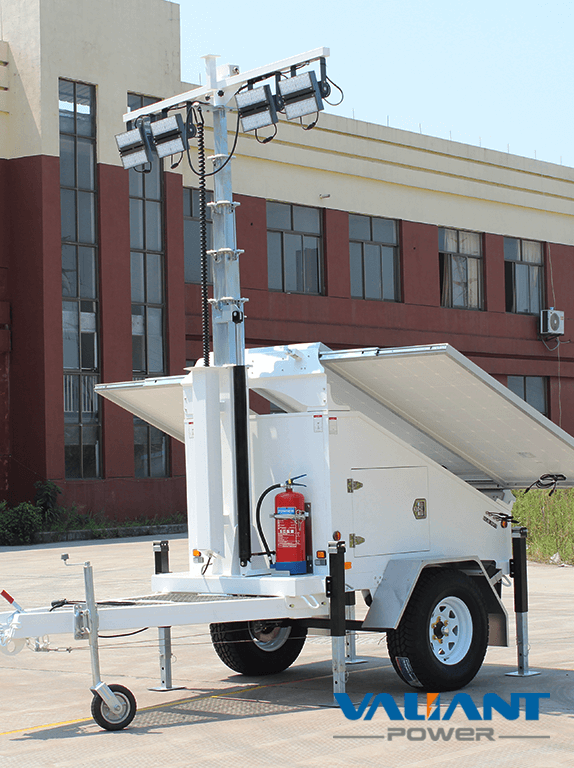

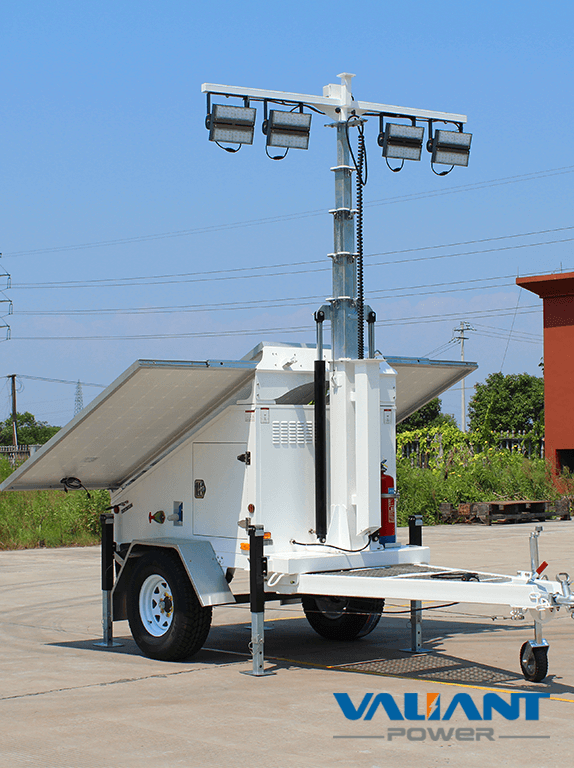

Solar Light Tower VTS900A-L
Product Feature:
1. 3*450W solar panels
2. 4*200Ah/6*150Ah/6*200Ah gel batteries,DC24V system
3. 4*60W/4*100W/6*100W LED light
4. Optional 6 to 9 meters manual/electric/ hydraulic mast
5. Single axle solar light tower with Australia/ Europe/North America standard
Tower Dimensions
| Length: | 4040mm |
| Width: | 1780mm |
| Height: | 2750mm |
| Weight: | 1280kg |
Equipment Details
| Axle No.: | Single Axle |
| Tire and Rim Size: | 15" |
|
Stabalizer Supports: |
4xManual |
| Drawbar: |
A Frame |
| Tow Hitch: |
50mm Ball/ |
|
Working Temperature(℃): |
-35 - 60 |
|
Color: |
Customized |
Lighting Fixture Details
|
Type of Lights: |
LED |
|
Lamp Wattage: |
60/100W |
|
No. of lights: |
4/6 |
|
Light Output（W）: |
240/400/600 |
|
Lumens per Watt: |
110 |
|
Total Lumens(kW): |
22/44/66 |
|
Mast Raise/ Extension: |
Manual/Electric/ |
| Mast Height(m): |
Optional |
| Mast Rotation: |
360 Degrees |
| Wind Rating Speed: | 100km/h |
| Working Lifetime(h): | 50000 |
| Coil Cable: | 1*cat5e +4*AWG13 |

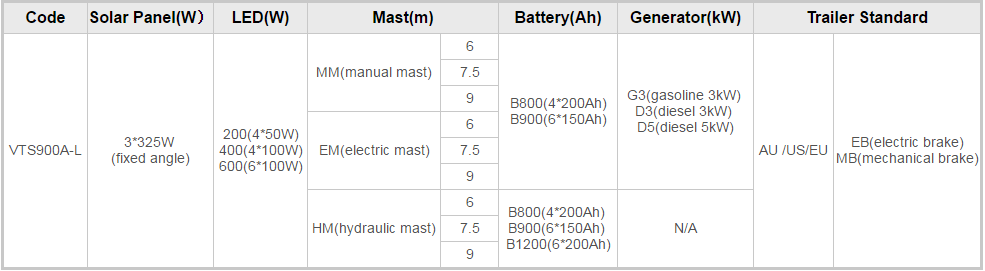

Selection Table:
Order Demonstration:
